Model D - 6" Dial
Item: MCD

McDaniel 6" All Stainless Steel Gauges with 1/2" NPT Connection

Technical Documents
Technical Documents
McDaniel All Stainless Gauges (PDF)

FAQs
Frequently Asked Questions

  Products > McDaniel Pressure Gauges
Model D - 6" Dial
Item: MCD

All Stainless Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.

Standard and optional features

Dial size: 6 inch (160mm)
Fillable: No
Connection: 1/2" NPT (1/4:HPF Standard above 35,000 psi)
Case: 304 Stain.Steel
Internals: 316 Stain.Steel
Wetted parts: 316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube
Accuracy: 1/2% FULL SCALE ASME B40.1 Grade 2A
(Up to 10,000psi, 15,000psi above 1%)
Ranges: 30"Hg-0-160psi or 30"Hg-0-300psi
Mount: Standard Bottom Connection, L-Lower back connection (without panel mount flange), P-Panel mount/lower back connection, R-Rear Flange-(For Wall Mounting), U-Panel Mount/lower back u-clamp
Scale: NH3 - Equivalent ammonia temperature scales
Options:
Standard: All Stainless Steel Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.

Dimensional Drawings

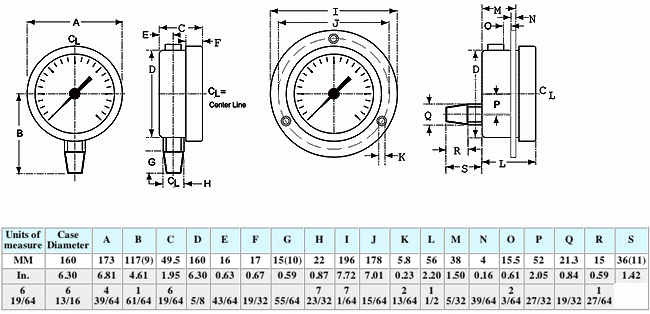

Dimensional Drawings for McDaniel Model D - 6" Dial

McDaniel
McDaniel Pressure Gauges
Rev. 11/20/2008
