Products > McDaniel Pressure Gauges

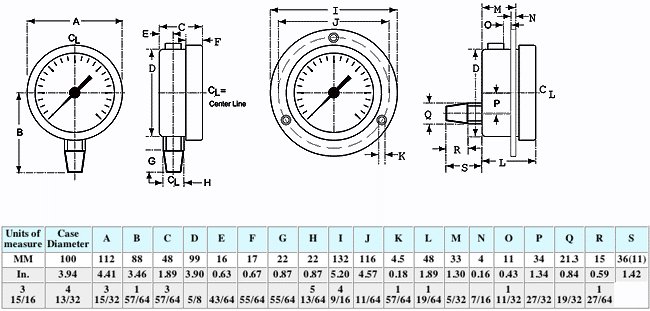

Model C - 4" Dial
Item: MD-C
All Stainless Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.
Standard and optional features
Dial size: |
4 inch (100mm)
|
Fillable: | No
|
Connection: |
1/2" NPT only
|
Case: | 304 Stain.Steel
|
Internals: | 316 Stain.Steel
|
Wetted parts: | 316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube
|
Accuracy: | 1/2% FULL SCALE ASME B40.1 Grade 2A
(Up to 10,000psi, 15,000psi above 1%) |
Ranges: | 30"Hg-0-160psi or 30"Hg-0-300psi
|
Mount: | Standard Bottom Connection, L-Lower back connection (without panel mount flange), P-Front Flange Panel Mount/lower back connection, R-Rear Flange-(For Wall Mounting), U-Panel Mount/lower back u-clamp
|
Scale: | NH3 - Equivalent ammonia temperature scales
|
Options: |
|
Standard: |
All Stainless Steel Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.
|
|
